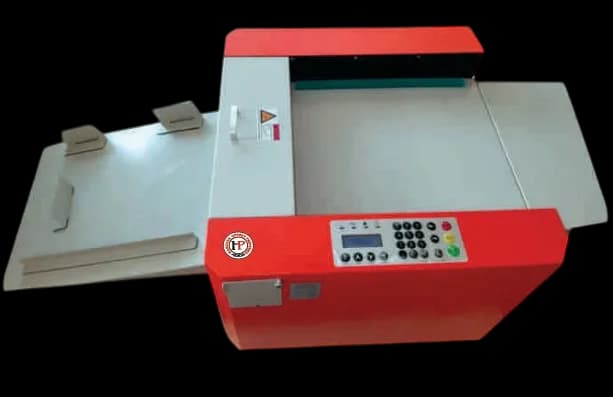

SM-370Y DIGITAL MANUAL FEEDING CREASING MACHINE

Not every bindery in Bhopal needs a fully automatic feeder — many operators actually prefer keeping a hand on each sheet, especially when jobs change specification every few hundred copies. The SM-370Y is built for that workflow: same digital crease-track precision as its automatic sibling, but with manual feeding that gives the operator direct control over pace and placement.

Spec-wise, it shares the same core engineering as its automatic counterpart. Paper size ranges from a minimum of 210×297 mm to an extendable maximum of 335×655 mm, and the machine offers 32 individual creasing track groups so complex multi-fold jobs can be preset and switched between quickly. Rated speed tops out at 2850 sheets per hour under ideal feeding, with working accuracy held to ±0.3 mm — tight enough for premium folder and packaging work where a crooked crease would ruin the piece.

Stock compatibility runs from 100 to 350 gsm for standard creasing and 128 to 200 gsm for dotted-line creasing, and the askew adjustment is described as simple by design, meaning setup between jobs doesn't eat into production time. Power draw is a modest 195 W, and it accepts both 220V/50Hz and 110V/60Hz supply. Maximum feed height through the unit is 110 mm, enough clearance for thicker board and laminated sheets.

At ₹94,990 this creasing machine in bhopal gives smaller print shops, coaching institute printing sections, and packaging converters a genuine step up from hand creasing without the premium of an auto-feed line. Bring a sample sheet to our Bhopal showroom and we'll run it through live so you can check the crease quality against your own stock before committing. We handle delivery within Bhopal, ship to Gwalior, Ujjain, and other parts of Madhya Pradesh via courier, and back every unit with local service support and an AMC option once you're past the standard warranty.
